Add a pdf file to filebox,
which has been created with a XojoScript
Parameters:
Name |
Type |
Description |
fileboxname |
String |
Name
of the filebox, for example: imFB_evt_Files |
Returns:
Type |
Value |
Description |
Boolean |
True
or False |
Returns
True if a pdf file has been
successfully added to filebox fileboxname Returns
False if -
currently
no pdf file exists -
the
filebox does not exist -
no
editing is taking place -
an
unknown error occurred The
file can only be added to the filebox when editing or inserting of a
new record or registration is taking place (linkmode, editmode or insertmode) |
Available in:
WindowMain |
WindowLink |
YES |
YES |
Used in:
XojoScript
Name |
GUID |
Create
Seminar Invoice As PDF |
2C3F7F29-A29A-4338-ACF5-51894B709DA5 |
Create
Seminar Invoice With Slip As PDF |
739DA58E-17EE-41CE-BB54-E7362CFE17D4 |
Hint: You can
find references to XojoScripts which make use of this function by sending the
following SQL statement to the database:
Select id,GUID, ScriptName,ScriptCode from
im_scripts where ScriptCode Like '%PdfAddToFilebox%'
Example XojoScript:
If
Not PdfStart("testfile.pdf") > 0 Then
MsgBox "PDF creation of PDF failed!"
Return
End
If
PdfSetPageCoordsTopDown
Dim
x,y As Double
// Set font, size and color
PdfSetFont("Arial","Regular",10.0)
Call
PdfSetFillColor("&c00000000")
// black textcolor
// write a location and current date
x
= 400.0
y
= 30.0
Call
PdfWriteText(x,y,"Basel,
" + GetDateLocalized)
y
= 100.0
Call
PdfsettextRect(x,y,200.0,-1) // -1 = not breaking to next page
Call
PDFwriteFText("LEFT","Oliver Osswald" + eol + "Gruthweg
9" + eol + "4132 Muttenz")
// Finalize PDF
Call
PdfcloseFile
// Show it to the user
Call
pdflaunch

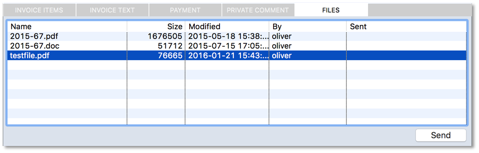

// Save it into filebox
Call
PdfAddToFilebox("imFB_lnk_p04_Files")
