PdfChangeFontSize(size As Double) As Boolean



Change size of current font in pdf.

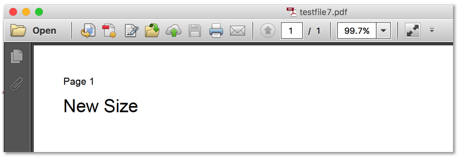

Description: Macbook HD:Users:oliver:Desktop:Screen Shot 2016-01-21 at 16.07.23.png



Parameters:



Name

Type

Description

size

Double

New size for the previously defined font



Returns:



Type

Value

Description

Boolean

True or False

Returns True if the fontsize has successfully been changed on current pdf page



Available in:



WindowMain

WindowLink

YES

YES



Used in:



XojoScript Name

GUID

Create Seminar Invoice As PDF

2C3F7F29-A29A-4338-ACF5-51894B709DA5

Create Seminar Invoice With Slip As PDF

739DA58E-17EE-41CE-BB54-E7362CFE17D4





Hint: You can find references to XojoScripts which make use of this function by sending the following SQL statement to the database:

Select id,GUID, ScriptName,ScriptCode from im_scripts where ScriptCode Like '%PdfChangeFontSize%'



Example XojoScript:



If Not PdfStart("testfile.pdf") > 0 Then

MsgBox "PDF creation of PDF failed!"

Return

End If



PdfSetPageCoordsTopDown

Dim x,y As Double = 30.0



// Set output font:

PdfSetFont("Arial","Regular",10.0)



Call PdfSetFillColor("&c00000000") // black textcolor



// write a location and current date

Call PdfWriteText(x,y,"Page 1")



// Change font size to 18

Call PdfChangefontSize(18.0)



Call PdfWriteText(x,50.0,"New Size")



// Finalize PDF

Call PdfcloseFile



// Show it to the user

Call pdflaunch
