Creates a
new pdf file, based on a pdf template
The pdf
file is created within the application data temporary folder, a first page is
appended
and the
template pdf file gets inserted on this page as background.
Parameters:
Name |
Type |
Description |
NewFileName |
String |
Name of new pdf file. The name can be given with or without .pdf extension. If the extension is lacking, it will be added. If a pdf file of the same name already exists within the
temporary folder, then a counter value will be added to the main name of the
file, for example: testfile.pdf
becomes testfile1.pdf |
TemplateName |
String |
Name of a pdf file which serves as background for the
first page of the new pdf file. A template file typically contains your logo and any
static information to appear in the final pdf file. One must previously have imported the template pdf-file
with Script Manager. See menu Script -> New Templates Manager |
Returns:
Type |
Value |
Description |
Integer |
1 |
OK, the pdf file exists and the template has been
imported. |
Integer |
0 |
Not OK, the pdf file does not exist. |
Integer |
2 |
Not OK, the pdf file exists, but no template was imported. |
Integer |
-2 |
An unknown exception occured |
Available
in:
WindowMain |
WindowLink |
YES |
YES |
Used in:
XojoScript
Name |
GUID |
Create
Seminar Invoice With Slip As PDF |
739DA58E-17EE-41CE-BB54-E7362CFE17D4 |
Create Seminar
Invoice As PDF |
2C3F7F29-A29A-4338-ACF5-51894B709DA5 |
Hint: You can
find references to XojoScripts which make use of this function by sending the
following SQL statement to the database:
Select id,GUID, ScriptName,ScriptCode from
im_scripts where ScriptCode Like '%PdfStartFromTemplate%'
Example
XojoScript:
// Import your own letterhead pdf file from menu
// Scripts -> New Template Manager
Dim
templateName As String
= "template_letter_A4_P2_RC.pdf"
If
PdfStartFromTemplate("testfile.pdf",templateName) = 1 Then
// Point of origin is
top-left
PdfSetPageCoordsTopDown
// Define variables for
position
Dim x,y As Double
// Set output font and
color
PdfSetFont("Arial","Regular",10.0)
Call PdfSetFillColor("&c00000000")
// black textcolor
// write a location and
current date
x = 400.0
y = 30.0
Call PdfWriteText(x,y,"Basel,
" + GetDateLocalized)
y = 100.0
Call PdfSetTextRect(x,y,200.0,-1) // -1 = not breaking to next page
Call PDFwriteFText("LEFT","Oliver Osswald" + eol + "Gruthweg
9" + eol + "4132 Muttenz")
// Finalize PDF
Call PdfCloseFile
// Optimize final pdf, as
we have imported pdf from unknown source
Call PdfOptimize(0)

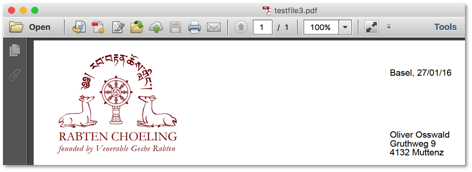

// Open pdf in default
pdf viewer
Call Pdflaunch
End
If
