PdfTableAddRow(tblHandle As Integer, optional height As Double) As Integer

Add a row to a table

Parameters:

Name	Type	Description
tblHandle	Integer	The identification number (handle) of a table, obtained from the PdfTableCreate function.
height	Double	The specification of the rowheight is optional. The height represents the minumum height of each row. If the height of a foreground object is larger, then the row height will be adjusted. Example row height: 15.0 The parameter height can be set to a negative value to indicate that the default row height should be used. The default row height was specified in PdfTableCreate.

Returns:

Type	Value	Description
Integer	>= 0	number of added row
Integer	-1	failed to add a row
Integer	-2	An unknown exception occured

Available in:

WindowMain	WindowLink
YES	YES

Used in:

XojoScript Name	GUID
Create Seminar Invoice With Slip As PDF	739DA58E-17EE-41CE-BB54-E7362CFE17D4
Create Seminar Invoice As PDF	2C3F7F29-A29A-4338-ACF5-51894B709DA5

Hint: You can find references to XojoScripts which make use of this function by sending the following SQL statement to the database:

Select id,GUID, ScriptName,ScriptCode from im_scripts where ScriptCode Like '%PdfTableAddRow%'

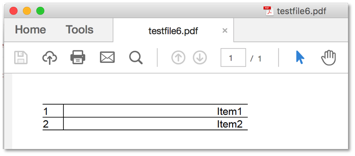

Example XojoScript:

Const AllRows = -1

Const AllColumns = -1

Dim mainfont As String = "Arial"

Dim fontsize As Double = 10.0

Dim width As Double = 200.0

Dim rows As Integer = 2

Dim x,y As Double = 30.0

If PdfStart("testfile.pdf") > 0 Then

// Set top top-left as 0,0 coordinates

PdfSetPageCoordsTopDown

// Set output font and color

PdfSetFont("Arial","Regular",10.0)

Call PdfSetFillColor("&c00000000") // black textcolor

Dim hTbl As Integer = PdfTableCreate(2,2,width,9.0)

If hTbl >= 0 Then

// Set the first four columnwidths, the 2nd column autoadjusts

Call PdfTableSetColumnWidth(hTbl, 0, 20.0, False)

// Set Font, Size and Style for table

Call PdfTableSetFont(hTbl,AllRows, AllColumns, mainfont, fontsize, "Regular")

// Set outer border

Call PdfTableSetBorderWidth(hTbl,AllRows, AllColumns, 0.0, 0.5, 0.0, 0.5)

// Set inner gridlines

Call PdfTableSetGridWidth(hTbl, 0.5,0.5)

// Set Padding (distance from Text to Cellborder)

Call PdfTableSetCellPadding(hTbl,AllRows, 1, 5.0, 0.0, 5.0, 0.0)

// Hold number of PDFTableRows created

Dim rowNum As Integer = 0

For i As Integer = 0 To rows-1

// Add a row

rowNum = PdfTableAddRow(hTbl)

Dim cnt As String = Str(rowNum+1)

Call PdfTableSetCellText(hTbl,rowNum, 0, "Left", "Top", cnt)

Call PdfTableSetCellText(hTbl,rowNum, 1, "Right", "Top", "Item" + cnt)

Next // i

// Draw the table out to pdf

Call PdfTableDraw(hTbl,x,y,0.0) // 0.0 = avoid pagebreaks

End If // hTbl >= 0

// Finalize PDF

Call PdfCloseFile

// Open PDF in default viewer

Call Pdflaunch

End If // PdfStart("testfile.pdf")
