PdfTableSetBorderWidth(tblHandle As Integer, row As Integer, column As Integer, left As Double, top As Double, right As Double, bottom As Double) As Boolean

Sets the border width of the table, a row or cells

Parameters:

Name	Type	Description
tblHandle	Integer	The identification number (handle) of a table, obtained from the PdfTableCreate function.
row	Integer	The index of the row to set a border, first row is 0. If row is -1, all rows are modified
column	Integer	The index of the column to set a border, first column is 0. If column is -1, all columns are modified
left	Double	Strength of left border in points
top	Double	Strength of top border in points
right	Double	Strength of right border in points
bottom	Double	Strength of bottom border in points

Returns:

Type	Value	Description
Boolean	True or False	Returns True when border successfully has been applied Returns False upon failure

Available in:

WindowMain	WindowLink
YES	YES

Used in:

XojoScript Name	GUID
Create Seminar Invoice With Slip As PDF	739DA58E-17EE-41CE-BB54-E7362CFE17D4
Create Seminar Invoice As PDF	2C3F7F29-A29A-4338-ACF5-51894B709DA5

Hint: You can find references to XojoScripts which make use of this function by sending the following SQL statement to the database:

Select id,GUID, ScriptName,ScriptCode from im_scripts where ScriptCode Like '%PdfTableSetBorderWidth%'

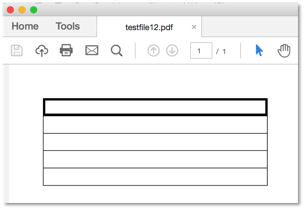

Example XojoScript:

// Create pdf file and add table with 5 rows

If PdfStart("testfile.pdf") > 0 Then

// Set top top-left as 0,0 coordinates

PdfSetPageCoordsTopDown

Dim hTbl As Integer = PdfTableCreate(1,1,200.0,9.0)

If hTbl >= 0 Then

// Set outer border around table (all cells)

Call PdfTableSetBorderWidth(hTbl,-1, -1, 0.5, 0.5, 0.5, 0.5)

// Set inner gridlines

Call PdfTableSetGridWidth(hTbl, 0.5,0.5)

// Add 5 rows of 15.0 points row height

Call PdfTableAddRows(hTbl,5,15.0)

// Set thicker cell border in first row only (0,0)

Call PdfTableSetBorderWidth(hTbl,0, 0, 1.5, 1.5, 1.5, 1.5)

// Draw the table to pdf, at coordinates x=30 y=30

Call PdfTableDraw(hTbl,30.0,30.0,0.0) // 0.0 = avoid pagebreaks

End If // hTbl >= 0

// Finalize PDF

Call PdfCloseFile

// Open PDF in default viewer

Call Pdflaunch

End If // PdfStart("testfile.pdf")
